- Order number: SW10032

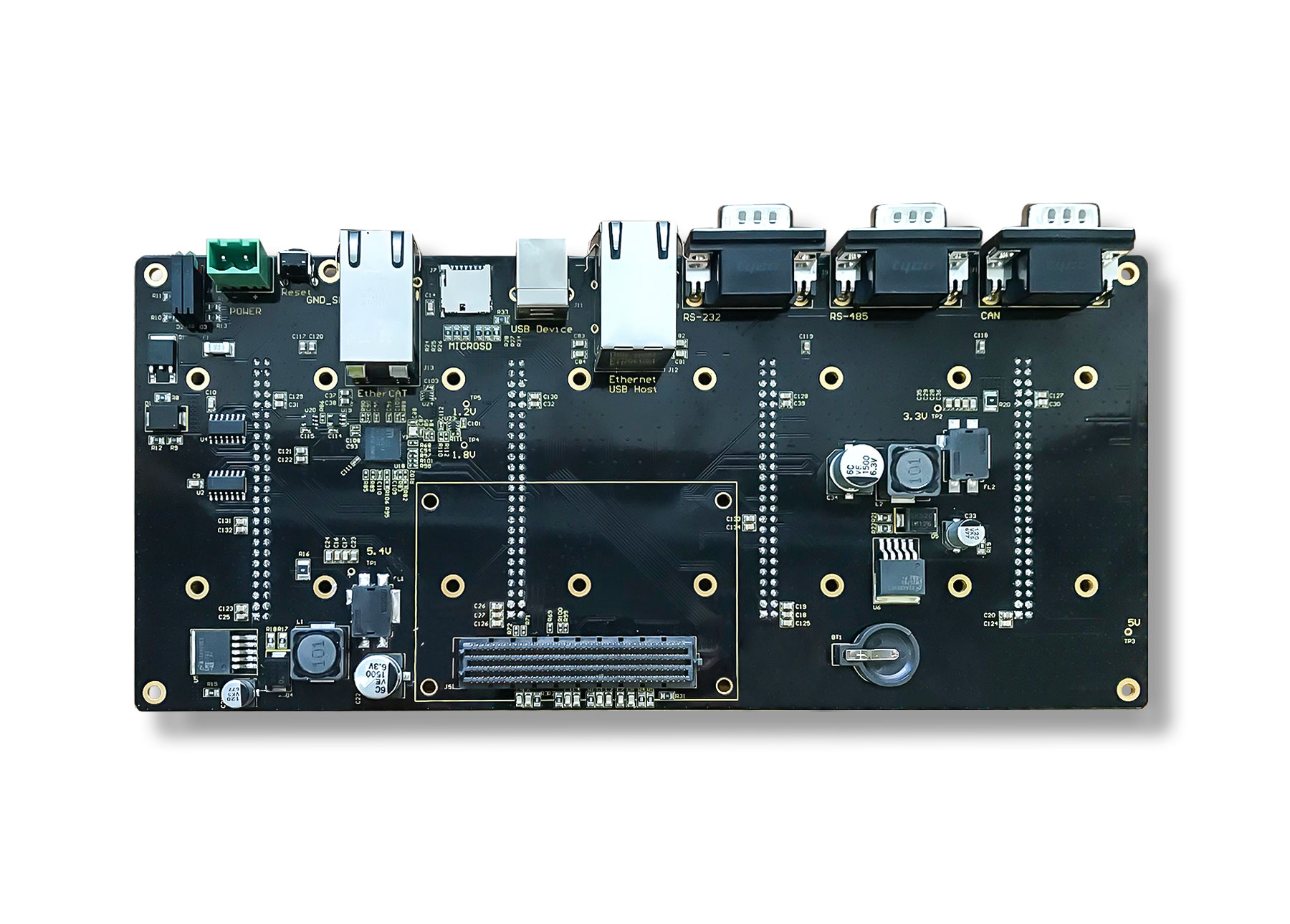

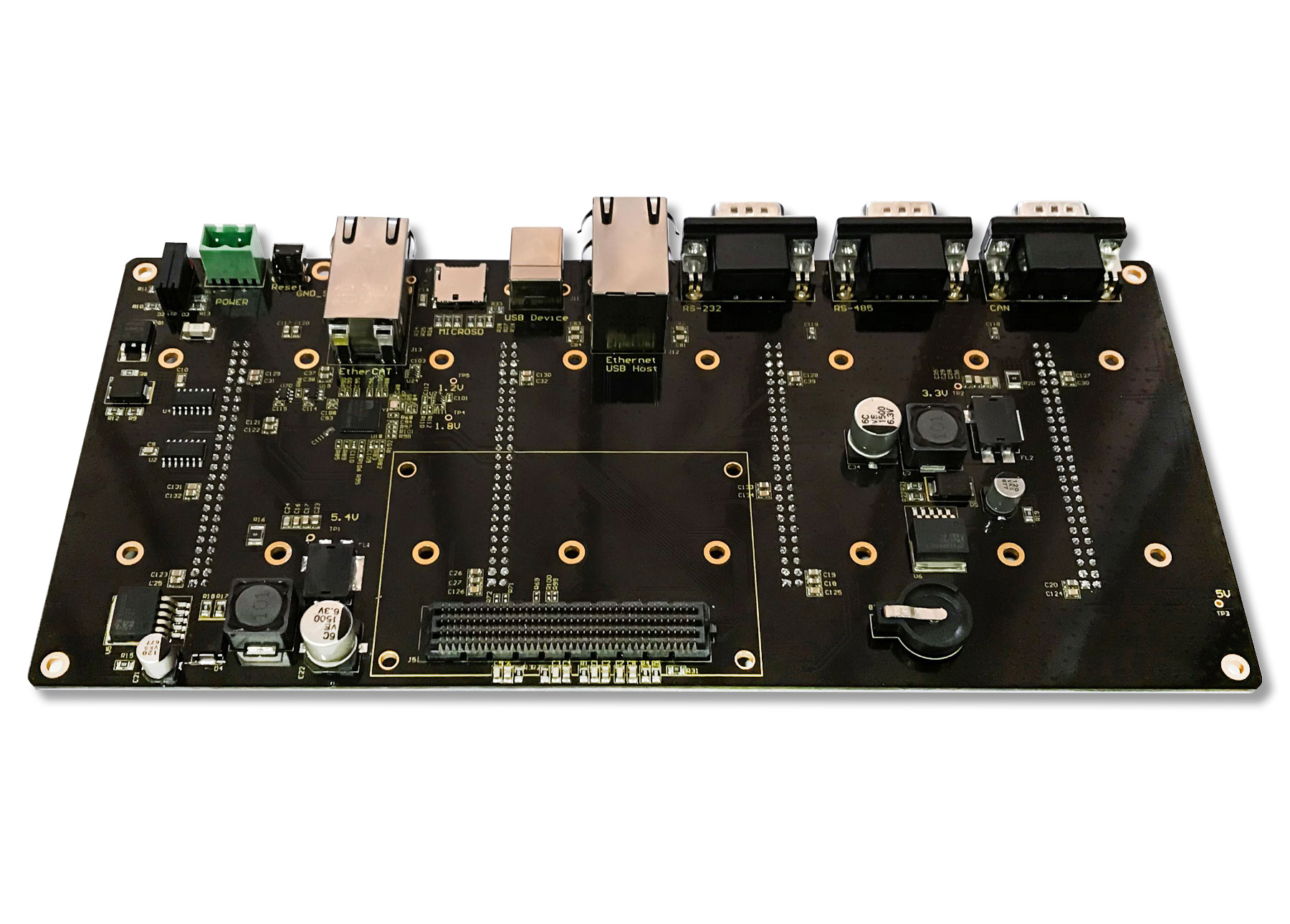

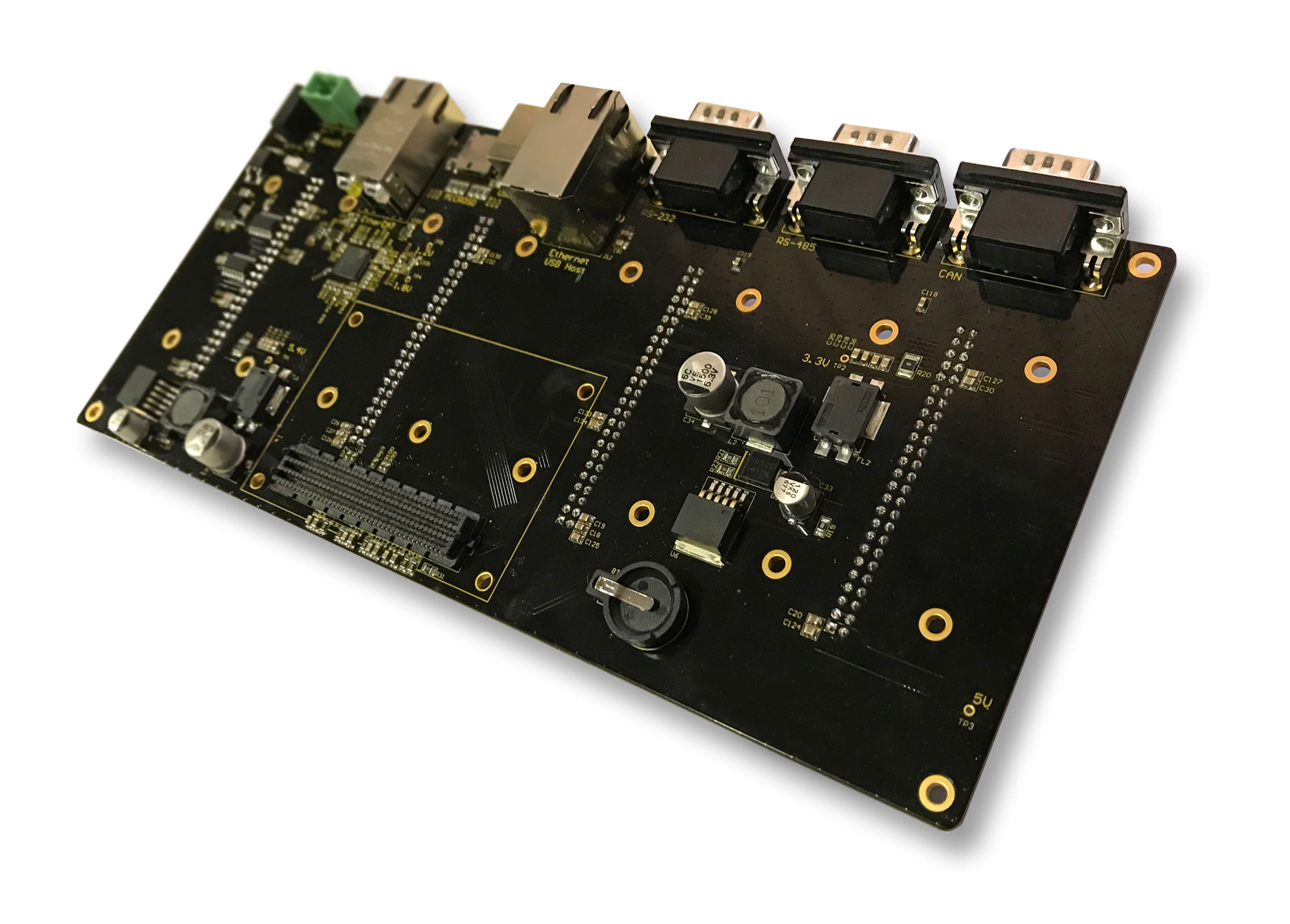

Universal adapter board for NI sbRIO-9651 (from National Instruments) is a multipurpose daughter card device intended for use in various applications. The board incorporates most of the interfaces available on the NI sbRIO-9651, including Ethernet, USB Host and USB Host/Device interfaces. The board includes also serial interfaces RS-232, RS-485 and CAN, as well as microSD card interface. Having two GB Ethernet ports, board allows to use the primary Ethernet port for the connection to Ethernet networks, while the secondary port can be programmed to work with EtherCat protocol. The board forms power supply for the NI sbRIO-9651. The adapter board supports module cards, which are mounting using board-to-board connectors. The modules can be powered from the adapter board. The control of module cards is accomplished from the NI sbRIO-9651 board, using digital channels, available on the board-to-board connectors.
Features of RS9011D Universal Adapter Board include:
- 320-pin mezzanine connector for connections of NI sbRIO-9651 embedded device
- Supports up to 4 module cards
- GB Ethernet interface (2 ports)
- USB 2.0 Host interface
- USB 2.0 Host/Device interface
- microSD card interface
- RS-232 serial port
- RS-485 serial port
- CAN serial port
- 94 digital bidirectional channels (3.3V)
- 10 digital output channels (1.8V)
- 10 digital output channels (3.3V)
|
Ethernet Interface |
|
|
Network interface |
10Base-T, 100Base-TX, 1000Base-T Ethernet |
|
Compatibility |
IEEE 802.3 |
|
Communication rates |
10 Mbps, 100 Mbps, 1,000 Mbps; auto-negotiated, half-/full-duplex |
|
USB Host Interface |
|
|
USB interface |
USB 2.0, Hi-Speed |
|
Maximum data rate |
480 Mb/s per interface |
|
USB Host/Device Interface |
|
|
USB interface |
USB 2.0, Hi-Speed |
|
Maximum data rate |
480 Mb/s per interface |
|
MicroSD Card Interface |
|
|
Supported standards |
SD, SDHC |
|
Throughput |
|
|
Read |
12 MB/s max |
|
Write |
9 MB/s max |
|
CAN Interface |
|
|
Baud rate |
|
|
Maximum |
1 Mb/s |
|
Minimum |
10 kb/s |
|
RS-232 Serial Interface |
|
|
Maximum data rate |
230,400 b/s |
|
High-level output voltage |
5.4 V typ |
|
Low-level output voltage |
-5.4 V typ |
|
Positive-going input threshold voltage |
1.6 V typ |
|
Negative-going input threshold voltage |
1.1 V typ |
|
RS-485 Serial Interface |
|
|
Maximum data rate |
230,400 b/s |
|
Differential output voltage |
2-3.6 V |
|
Differential input threshold voltage |
-125 mV typ |
|
Line input resistance |
96 kOhm |
|
3.3V Bidirectional Digital Channels |
|
|
Voltage level |
3.3 V |
|
Characteristic impedance |
50 Ohm |
|
1.8V/3.3V Digital Output Channels |
|
|
Voltage level |
1.8V/3.3 V |
|
Characteristic impedance |
50 Ohm |
